AMD Ryzen 7 7700X3D Review – A Budget Entry Into 3D V-Cache

Introduction

AMD’s 3D V-Cache lineup has spent more than four years redefining what a “gaming CPU” actually looks like, beginning with the original 5800X3D in 2022 and continuing through the Zen 5-based 9800X3D and 9850X3D. The Ryzen 7 7700X3D is a different kind of release: rather than pushing the performance ceiling higher, it’s a lower-clocked, lower-priced derivative of the three-year-old Ryzen 7 7800X3D, designed to give budget-minded AM5 buyers another entry into 3D V-Cache gaming.

The timing is notable. DDR5 pricing has climbed sharply over the past year as AI datacenter demand has diverted memory supply away from the consumer market, changing the calculus for anyone building a value-oriented gaming PC. A cheaper CPU provides cold comfort if the surrounding platform costs have skyrocketed. That backdrop matters as much to this review as the chip itself — and as we’ll explore, the 7700X3D’s relative insensitivity to memory speed is actually one of its most underrated selling points in the current market.

Processor Overview

The 7700X3D shares its silicon with the 7800X3D: same 8-core/16-thread Zen 4 die, same 96 MB 3D V-Cache L3, same 120W TDP. What changes is frequency — 4.0 GHz base and 4.5 GHz max boost, down 200 MHz and 500 MHz respectively from the 7800X3D — and price.

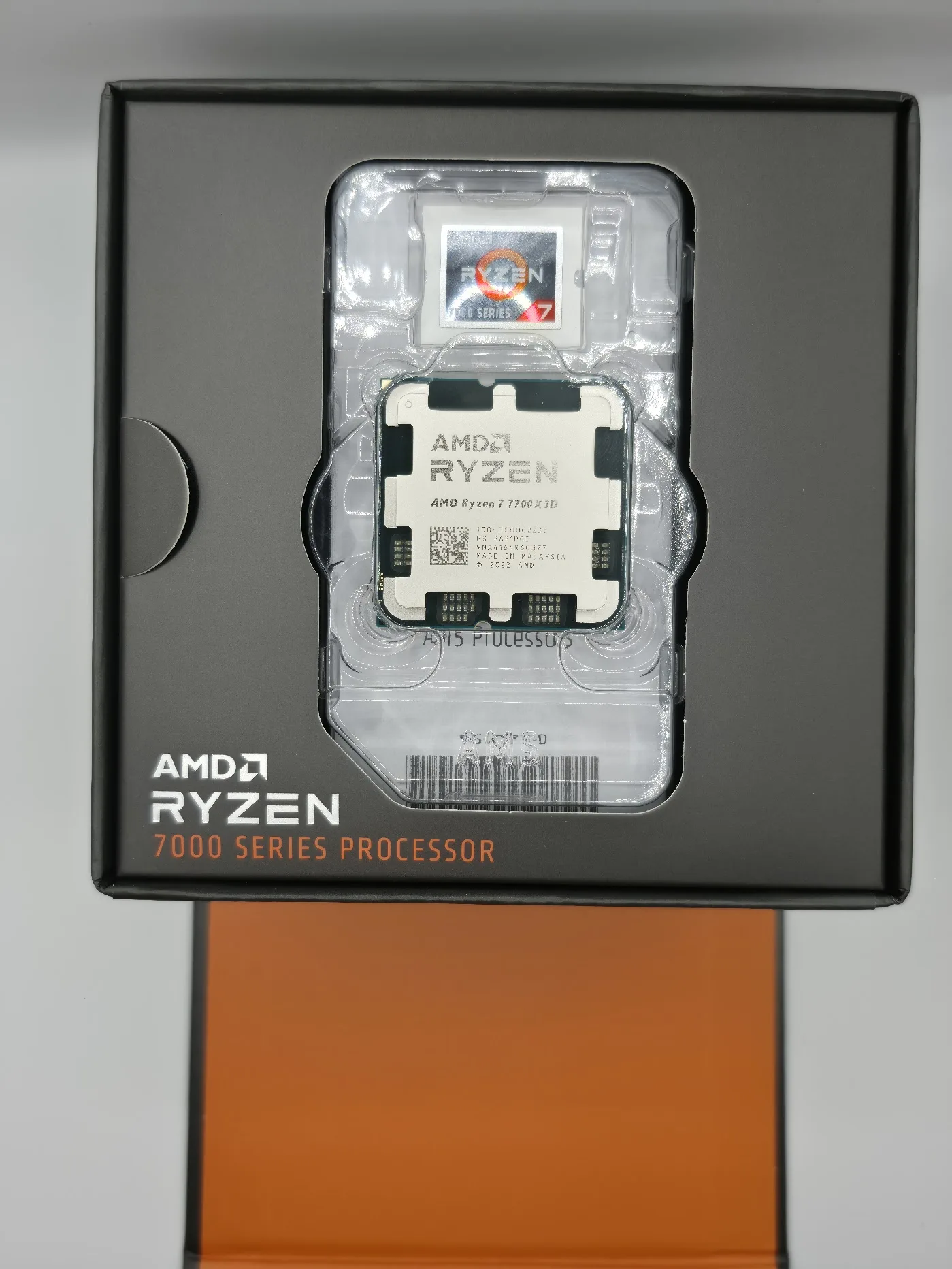

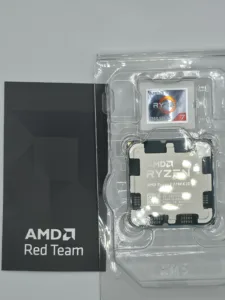

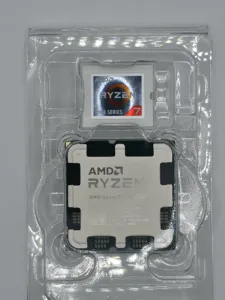

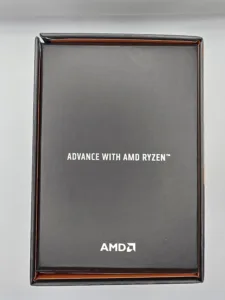

AMD Ryzen 7 7700X3D — retail packaging, IHS detail, and installed on the BTR test bench.

3D V-Cache Technology

The 7700X3D uses AMD’s first-generation 3D V-Cache implementation — a 64 MB die stacked atop the 32 MB on-die L3, addressed as a single contiguous 96 MB pool (104 MB total with L2). The reason this matters so much for gaming is cache locality: CPU-bound games are frequently limited not by raw compute throughput, but by how quickly the processor can retrieve game state data. The expanded L3 keeps dramatically more of the active working set resident in fast cache, rather than round-tripping to system memory.

The Single-DIMM Advantage

One underappreciated benefit that becomes important in today’s expensive DDR5 market: because so much working data fits in cache, the 7700X3D is far less sensitive to memory bandwidth than competing platforms. Our testing confirms AMD’s data showing the 7700X3D loses only ~1.5% average FPS dropping from dual-channel DDR5-6000 to a single 16 GB stick — versus over 4% for Intel’s Core Ultra 9 285K in the same scenario.

Platform & Memory Considerations

AM5 Longevity Through 2029

AMD has committed to Socket AM5 support through at least 2029 — a meaningful platform investment that distinguishes AM5 from Intel’s historically more rapid socket transitions. The 7700X3D drops into any 600- or 800-series AM5 board with an existing BIOS, though AMD recommends flashing the latest available firmware. A 240–280mm liquid cooler or equivalent is recommended given the 120W TDP.

Memory Sweet Spot: DDR5-6000 EXPO

DDR5-6000 with EXPO Profile 1 enabled is the optimal configuration for Zen 4 X3D. At DDR5-6000, the memory controller and DRAM run in 1:1 mode at 3000 MHz actual clock (6000 MT/s effective), with the Infinity Fabric at its 2000 MHz sweet spot — the tightest ratio achievable. Above DDR5-6000, the controller drops to a 2:1 ratio that partially negates the bandwidth gain. Only at DDR5-8000 and above does the 2:1 penalty become worth it — which is exactly why Intel required DDR5-8000 for competitive benchmarks.

Test Setup

Intel tested with DDR5-8000 and aggressive OC profiles. All results at 1920×1080, Best Performance mode.

Application Performance

The 7700X3D is not a productivity powerhouse. The 3D V-Cache stack lowers the maximum operating frequency of the core die, and the result is a chip that trails even the non-X3D 7700X in every workload that scales with raw compute throughput.

Gaming Performance

Gaming is where the 7700X3D earns its reason to exist. The 3D V-Cache advantage is consistent and real across our full game suite: games with any CPU-bound component at 1080p respond to the expanded cache in ways the raw GHz figures simply don’t predict.

Cache-sensitive titles respond dramatically. Starfield, Resident Evil Requiem, Far Cry 6, and HITMAN 3 show 15–20%+ lifts from the 7700X to the 7700X3D — real, perceptible improvements in both average and minimum frame rates. Baldur’s Gate 3 shows the largest single-game delta in our suite at +24%.

Not every game cares. Cyberpunk 2077 and DOOM show tighter spreads — the 7700X3D’s lower clock ceiling working against it in titles that aren’t deeply cache-bound. The averages are dominated by the titles that do benefit, so don’t expect an 8% lift uniformly across every game you play.

Pricing & Positioning

This is where the 7700X3D runs into its most significant headwind. The 7800X3D — faster in every gaming benchmark — is frequently available for only a modest premium, and the 7600X3D closes most of the gaming gap for $89 less while sipping only 65W.

What the Spec Sheet Doesn’t Tell You

Clean OS Install

AMD recommends a fresh Windows install for every processor change — particularly when switching X3D chip families. AMD’s provisioning packages manage processor power management and Game Bar/Game Mode optimizations, and incorrect packages from a prior CPU can silently hurt performance. The new AMD Provisioning Packages Service (Windows 11 25H2+) handles re-installation automatically, but a clean install remains the safest approach and is what we used for all testing.

BIOS: Latest Official Only

Existing AM5 BIOS images will boot the 7700X3D, but flash the latest available firmware regardless. Avoid third-party experimental BIOSes — AMD explicitly states it cannot validate their behavior, and unusual firmware can cause instability or missed performance optimizations that won’t show up in basic testing.

VBS: Leave It Enabled

All results here were collected with Virtualization-Based Security on — Windows 11’s default. If you choose to disable VBS, do it in BIOS rather than through the OS. The gaming performance delta is marginal and not worth the security trade-off for most users.

The OPP Memory Setting

The Memory Optimized Performance Profile (OPP), available in BIOS on current 600/800-series boards, allows the system to run an optimized DDR5-6000 profile on memory kits without a native EXPO 6000 profile — removing the guesswork for enthusiast DDR5 kits that top out at DDR5-7200 or above.

Verdict

Test System Appendix

Review unit provided by AMD. Single DIMM comparison data sourced from AMD internal testing, validated on BTR bench.
