GeForce 517.48 Driver Performance Analysis – 20 games benchmarked using an RTX 3080 and 2080 Ti

This driver performance analysis showcases the performance of a Gigabyte AORUS RTX 3080 MASTER (Ampere architecture) and an EVGA RTX 2080 Ti BLACK (Turing architecture) with 20 PC games using the latest GeForce 517.48 Game Ready driver. We compare this GeForce driver versus our previously recommended driver 516.94 with both cards, and we perform all tests on the same game version and OS build.

Our AORUS RTX 3080 MASTER, rev. 1.0 (Ampere GPU micro-architecture).

Our testing platform is a recent install of Windows 11 64-bit Pro Edition, an i9-12900K with stock clocks, an ASUS PRIME Z690-P D4 motherboard, and 32GB of T-FORCE XTREEM ARGB WHITE DDR4 3600MHz. The games tested, settings and hardware are identical except for the GPUs and the drivers we compare.

Our EVGA RTX 2080 Ti BLACK EDITION (Turing GPU micro-architecture).

Benching Methodology

Test Configuration – Hardware

  • 12th Gen Intel Core i9-12900K (Hyper-Threading/Turbo boost on; stock settings)
  • ASUS PRIME Z690-P D4 motherboard (Intel Z690 chipset, v.1008 BIOS)
  • T-FORCE XTREEM ARGB WHITE 32GB DDR4 (2×16GB, dual-channel at 3600 MHz CL14 XMP), supplied by TeamGroup
  • Gigabyte AORUS GeForce RTX 3080 MASTER 10GB (rev. 1.0); v.F4 VBIOS, stock clocks
  • EVGA GeForce RTX 2080 Ti BLACK EDITION GAMING 11GB, stock clocks
  • 1 x Samsung 500GB SSD 960 EVO NVMe M.2
  • 2 x WD Blue 1TB SATA SSD
  • 1 x TeamGroup MP33 M.2 PCIe 1TB SSD
  • Corsair RM850x, 850W 80PLUS Gold power supply unit
  • ASUS TUF Gaming VG289Q 28″ IPS UltraHD (3840×2160) 60Hz 5ms FreeSync Monitor for testing games at 2160p resolution.
  • ASUS ROG Swift PG279Q 27″ IPS QuadHD (2560 x 1440) 165Hz 4ms G-Sync Monitor for testing games at 1440p or (DL)DSR resolution.

Test Configuration – Software

  • NVIDIA GeForce 516.94 and 517.48 drivers; ‘High Quality’ and ‘prefer maximum performance’ (on a per-game profile-basis); Shader Cache Size ‘Unlimited’ (globally); fixed refresh rate (globally).
  • We enable Resizable BAR.
  • ‘V-Sync application controlled’ in the control panel; V-Sync off in-game.
  • AA and AF as noted in games; all in-game settings are specified.
  • Windows 11 64-bit Pro edition, latest updates v22H2, High-performance power plan, HAGS & Game Mode are enabled, Game DVR & Game Bar features off, Control Flow Guard (CFG) off on a per-game basis, Hypervisor and Virtualization-based security are disabled.
  • We do not install GIGABYTE or ASUS tools.
  • Latest DirectX
  • All 20 games are patched to their latest versions at the time of publication.
  • 3DMark suite and UNIGINE Superposition benchmark, the latest version
  • Basemark GPU benchmark, v.1.2.3
  • UNIGINE Superposition, v.1.1
  • CapFrameX (CX), the latest version
  • RivaTuner Statistics Server (RTSS), the latest version
  • Display Driver Uninstaller (DDU), the latest version; always uninstall old driver using DDU in safe mode, clean, and restart.
  • ISLC (Purge Standby List) before each benchmark.

GeForce Driver Suite-related

  • We use DCH Game Ready drivers.
  • The display driver is installed.
  • We install the latest version of PhysX.

Hybrid & Non-Synthetic Tests-related

  • Single run per test.

Game Benchmarks-related

  • We use the corresponding built-in or custom benchmark sequence.

Frametimes Capture & Analysis tool-related

  • We use CapFrameX for capturing and analyzing the relevant performance numbers obtained from each recorded built-in or custom benchmark sequence.
  • We always perform consecutive runs until detecting three valid runs (no outliers) that can be aggregated by CapFrameX using the following method:
    • Aggregate excluding outliers:
      • Outlier metric: Third, P0.2 (0.2% FPS percentile).
      • Outlier percentage: 3% (the % the FPS of an entry can differ from the median of all entries before counting as an outlier).
  • We compare and evaluate the results and aggregated records in terms of percentages of gain/loss and set the following thresholds to consider a % value as significant (not within the margin of error) for our benchmarking purposes:
    • Score/FPS Avg > 3% when valuing hybrid and non-synthetic benchmarks;
    • FPS Avg > 3% when evaluating raw performance;
    • P1/P0.2 > 3% when evaluating frame time consistency; after applying our custom formula

{[(LowPercentileFPS_2 / AvgFPS_2) / (LowPercentileFPS_1 / AvgFPS_1)] – 1} x 100

Benchmark Suite: 20 PC Games, 4 Hybrid & 5 Non-Synthetic Tests

Hybrid Tests (3DMark)

  • DirectX Raytracing feature test
  • Fire Strike Ultra
  • Port Royal
  • Time Spy Extreme

Non-Synthetic Tests

  • Basemark GPU
  • Boundary: Raytracing Benchmark
  • GPUScore: Relic of Life
  • Neon Noir (Benchmark)
  • UNIGINE Superposition

DX11 Games

  • Chernobylite (DX11)
  • Days Gone (DX11)
  • God of War (DX11)

DX12 Games

  • Assassin’s Creed Valhalla (DX12)
  • Borderlands 3 (DX12)
  • Call of Duty: Vanguard (DX12)
  • Cyberpunk 2077 (DX12)
  • DIRT 5 (DX12)
  • F1 2021 (DX12)
  • Far Cry 6 (DX12)
  • Forza Horizon 5 (DX12)
  • Ghostwire: Tokyo (DX12)
  • Hitman 3 (DX12)
  • Horizon Zero Dawn (DX12)
  • Metro Exodus PC Enhanced Edition (DX12)
  • Shadow of the Tomb Raider (DX12)
  • Watch Dogs: Legion (DX12)

Vulkan Games

  • DOOM Eternal (VK)
  • Quake 2 RTX (VK; v.1.6.0)
  • Wolfenstein: Youngblood (VK)

NVIDIA Control Panel settings

Here are the global NVIDIA Control Panel settings:

NVIDIA Control Panel Global 3D Settings (AORUS RTX 3080 MASTER).
NVIDIA Control Panel Global 3D Settings (EVGA RTX 2080 Ti Black).

Both ‘High-Quality’ values for texture filtering-quality setting and ‘Prefer maximum performance’ for power management mode are set on a per-game or program profile basis via Manage 3D Settings > Program settings tab.

GeForce 517.48 Game Ready WHQL Drivers

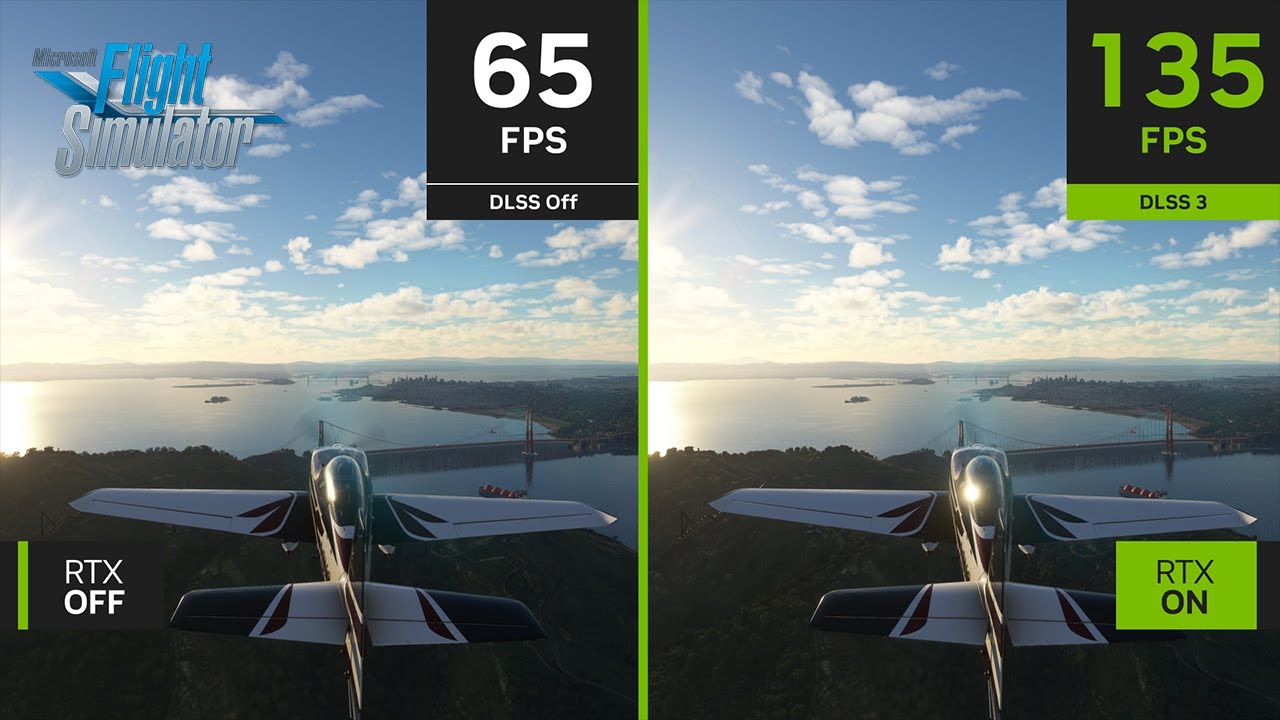

This latest GeForce Game Ready 517.48 driver was released on September 27 primarily for the release of Overwatch 2, which features NVIDIA Reflex technology. It also brings optimized support for Microsoft Flight Simulator’s DLSS 2 Update.

This new driver adds support for 4 more displays to the G-SYNC compatible list, bringing the total to 237 (HP HyperX Armada 27 and HyperX Armada 25; and Sony INZONE M9 and INZONE M3).

Source: nintendo.es

The download links for the latest GeForce 517.48 drivers can be found starting here. The release notes are found here as a downloadable pdf fileHere are the release highlights from NVIDIA’s website:

Game Ready Drivers provide the best possible gaming experience for all major new releases. Prior to a new title launching, our driver team is working up until the last minute to ensure every performance tweak and bug fix is included for the best gameplay on day-1.

Game Ready for Overwatch 2

This new Game Ready Driver provides the best day-0 gaming experience for Overwatch 2. In addition, this new Game Ready Driver offers support for the latest releases and updates including the addition of NVIDIA DLSS technology to Microsoft Flight Simulator.

Source: YouTube

The GeForce 517.48 Driver Performance – Summary Charts with 20 Games

Below you can find the summary charts of our representative selection of 20 games plus 4 hybrid and 5 non-synthetic benchmarks. We chart our games’ driver performance progression from version 516.94 to 517.48 using the AORUS RTX 3080 MASTER and the EVGA RTX 2080 Ti BLACK.

You can see the list of graphics settings on the charts, and we run each built-in or custom game benchmark’s sequence at 2560×1440, except for Days Gone and Far Cry 6 tested at 3840×2160 resolution. You may click each chart to open a pop-up for the best viewing.

Results give average framerates, and higher is better. We display the low FPS percentiles (P1 and P0.2) below the corresponding averages. We use CapFrameX to record frametimes over time and to visualize and convert them into their corresponding average FPS and P1 and P0.2 FPS percentiles values.

There are also columns showing percentages of gain/loss in both raw performance (average FPS) and, when applicable, in frame time consistency or stability between the different driver versions. We applied the following custom formula to calculate the stability gains or losses:

{[(LowPercentileFPS_2 / AvgFPS_2) / (LowPercentileFPS_1 / AvgFPS_1)] – 1} x 100

We mark significant performance changes (higher than 3%in bold and use purple for the significant improvements or orange font for regressions.

GeForce 517.48 Driver Performance Charts

geforce 517.48 driver performance

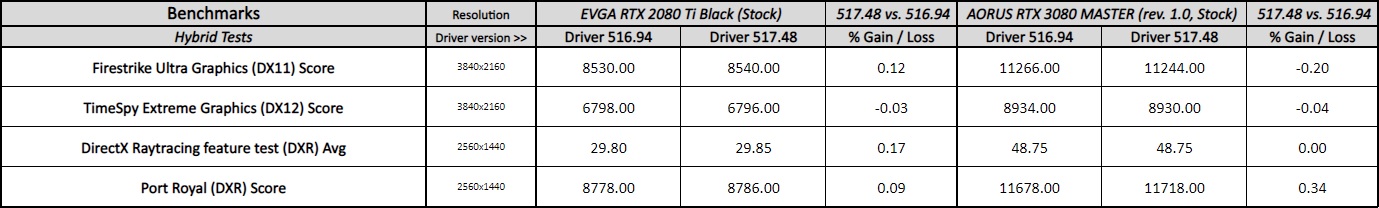

Hybrid Benchmarks
geforce 517.48 driver performance
Non-Synthetic Benchmarks
geforce 517.48 driver performance
DirectX 11 Games – We tested Days Gone, Chernobylite, and God of War using BTR custom sequences.
geforce 517.48 driver performance
DirectX 12 Games – Built-in benchmarks (except Call of Duty: Vanguard and Ghostwire: Tokyo, tested using BTR custom sequences).
geforce 517.48 driver performance
Vulkan Games – We tested Wolfenstein: Youngblood using its built-in benchmark & DOOM Eternal using a custom sequence.
geforce 517.48 driver performance
DirectX Raytracing Games – Built-in benchmarks (except Ghostwire: Tokyo, tested using BTR custom sequence).
geforce 517.48 driver performance
Vulkan Raytracing Games – Built-in benchmarks (except DOOM Eternal, tested using a custom sequence).

Notes on GeForce 517.48 Driver Performance

From the charts, although we see no significant differences in graphics performance between drivers for the hybrid tests using our RTX 3080 and RTX 2080 Ti, we see significant performance improvements in BasemarkGPU (Vulkan & DX12) non-synthetic tests.

For the game benchmarks, although most games show no significant differences when we move to 517.48 drivers from the 516.94 driver version using both GPUs, we see a significant performance improvement in frametime stability in Far Cry 6 (DXR).

Disclaimer
Please be aware that the following results, notes, and the corresponding driver recommendation are valid for similar Ampere and Turing gaming rigs on Windows 11 v22H2. Their representativeness, applicability, and usefulness on different NVIDIA GPU architectures, testing benches, and MS Windows versions may vary.

Conclusion

Based on our previous results and findings, we recommend Ampere and Turing users update to the latest GeForce 517.48 driver. Its raw performance and smoothness or frametimes consistency level are overall on par with our previously recommended driver 516.94, using both NVIDIA GPU architectures.

From a qualitative point of view, there are also important reasons that make it advisable to upgrade to version 517.48. These reasons include its higher level of driver bug fixes, the optimizations for the latest games, and support for the latest NVIDIA technologies.

We also want to let you know that we hope to be able to compare GeForce drivers under the Ada Lovelace architecture sometime next November, as soon as we manage to get our hands on a GeForce RTX 4080 16GB graphics card.
